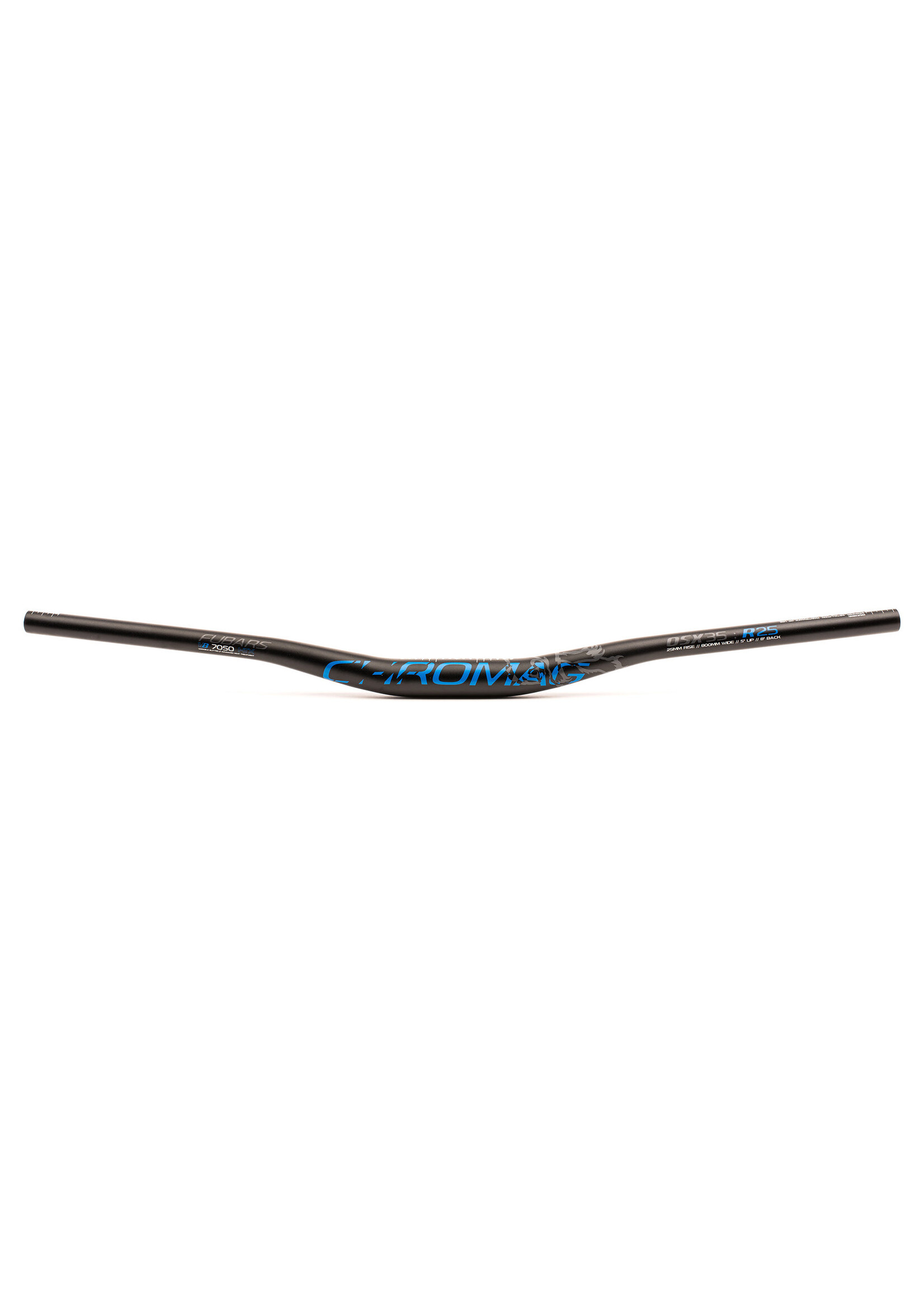

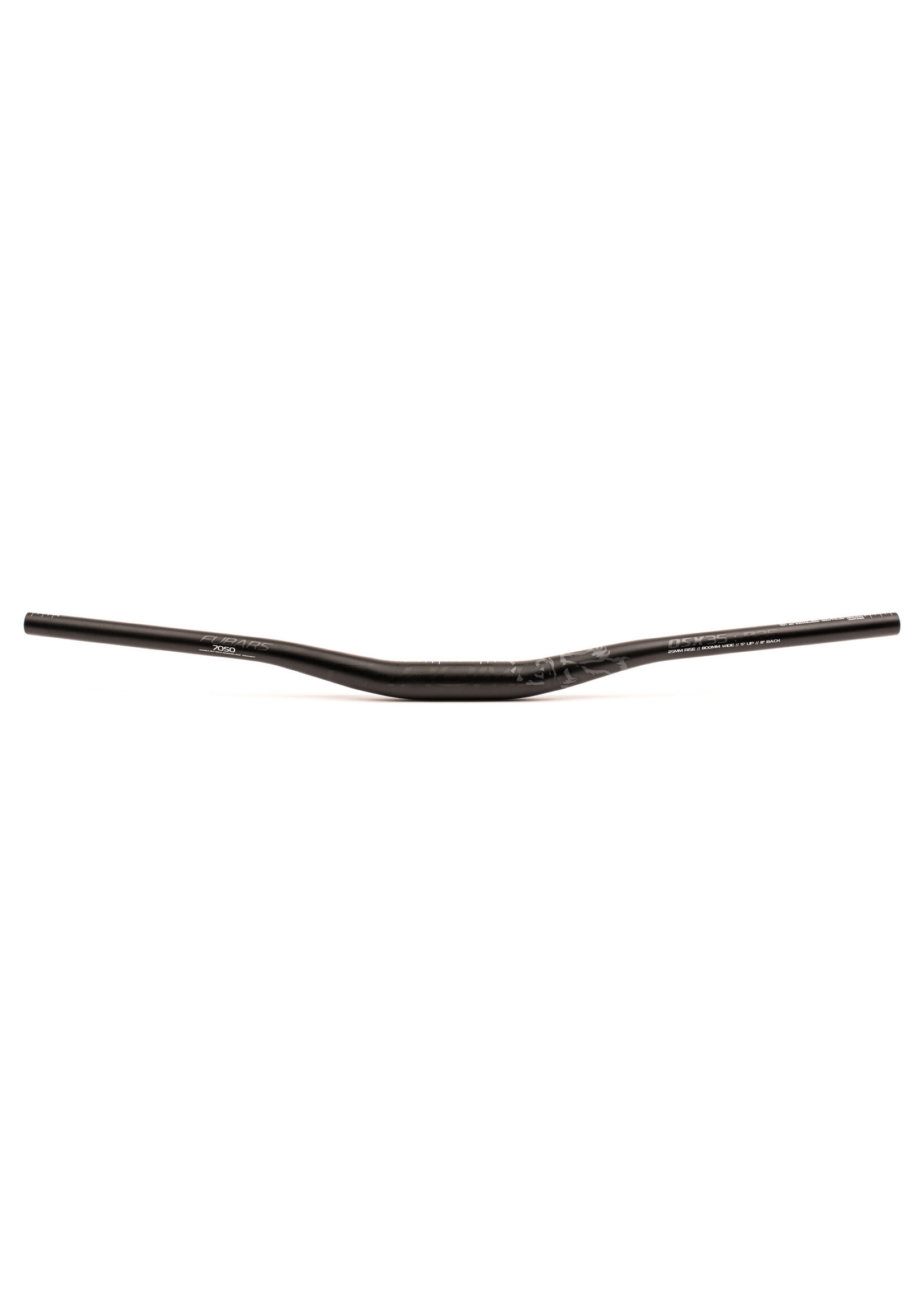

The OSX35 is built off the foundation of the classic OSX, with a 35mm clamp.

• More DH/Enduro focused than the OSX
• 35mm clamp
• 7000 series alloy provides highest strength to weight of all other Chromag bars

7050 Series Aluminum

Chromag uses aerospace grade aluminum to achieve the required properties of strength and toughness, with added resistance to stress and corrosion.

Advanced Heat Treatment

Heat treatment gets thrown around a lot, but most of the time the word consistency doesn’t come along with it. Depending on the batch an individual bar might be subjected to vastly different temperatures during the process. HTX ditches the disparity and provides uniform, quality heat treatment on every single bar.

Refined Geometry

By increasing the tapered sections and using a larger radius Chromag have inherently built more strength into the shape of the OSX.

Variable Butting

Varying the wall thickness of the bar allows for more strength where it’s needed, and keep the weight down in less strategic areas. The OSX has 7 different butting locations.

SPECIFICATIONS:

Material // Custom drawn 7000 series alloy
Width // 800mm (31.5”)
Clamp Size // 35mm
Rise // 25mm (1”) and 35mm (1.4")
Bend // 8°
Upsweep // 5°
Weight // 312g
